1.  General Description

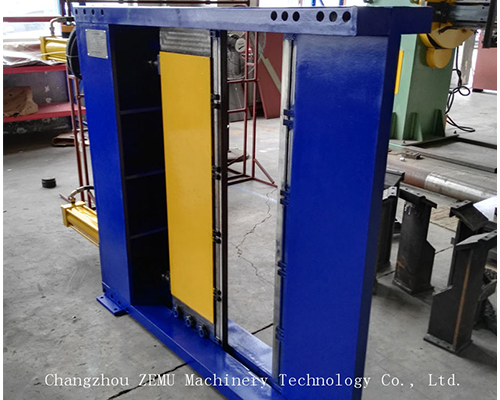

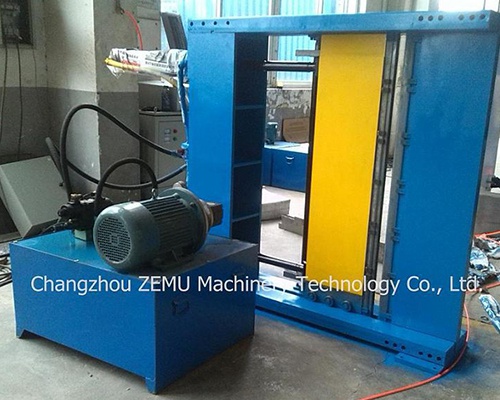

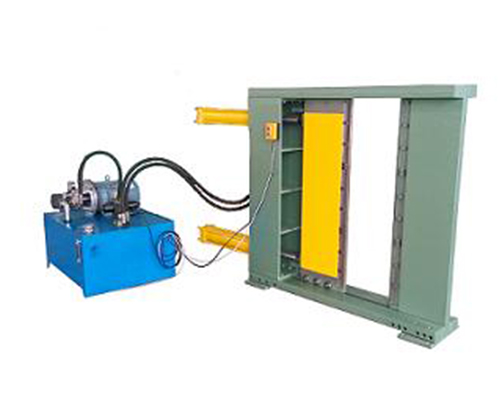

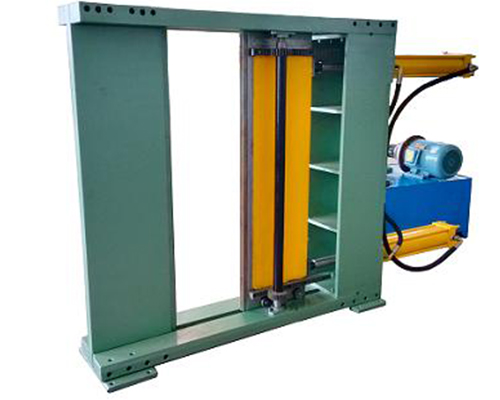

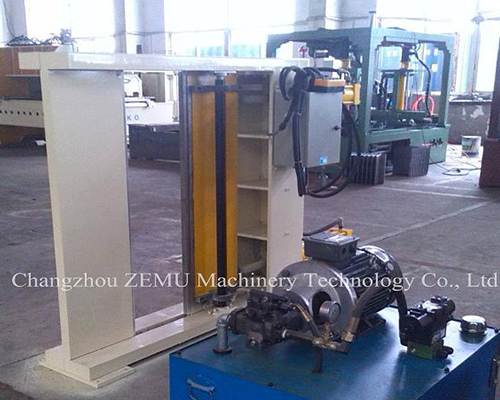

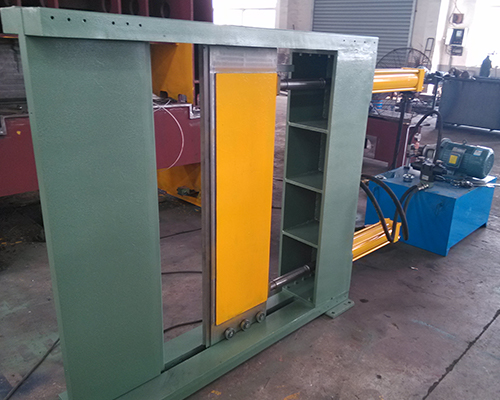

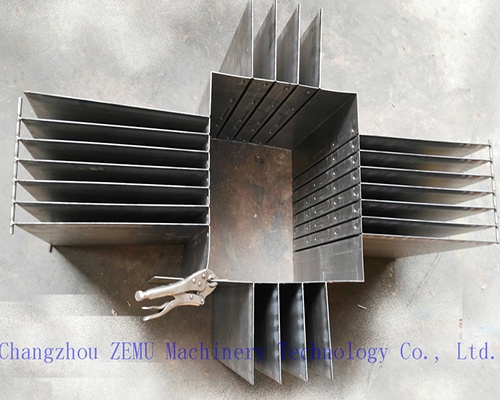

       This hydraulic vertical bending machine allows to form the 4 panels composing the complete transformer tank. Using this system it allows to eliminate 3 welding, save time of assembling and welding the tank with a reduction of leakage risks.

2.  Main Units of Hydraulic Vertical Bending Machine:

      1) Bending system

      2) Safety system for the operator

      3) Hydraulic unit

      4) Control panel

3. Main Parameters of Hydraulic Vertical Bending Machine:

      1) Sheet thickness(Max.): 1.75mm

      2) Panel width(Max.): 1300mm

      3) Panel fin height: 50-400mm

      4) Distance between panels(Min.): 60mm

      5) Power: 5.5Kw

      6) Hydraulic pressure: 10MPa
