1. General Description

    The transformer corrugated fin forming machine is used to produce  transformer fin wall

    Our machine got the highly praise for its lasting performance, reliable quality and high efficiency by our customers who come from India, Thailand, Indonesia, Sudan , Vietnam, Brazil,Korea,Canada and some other countries.

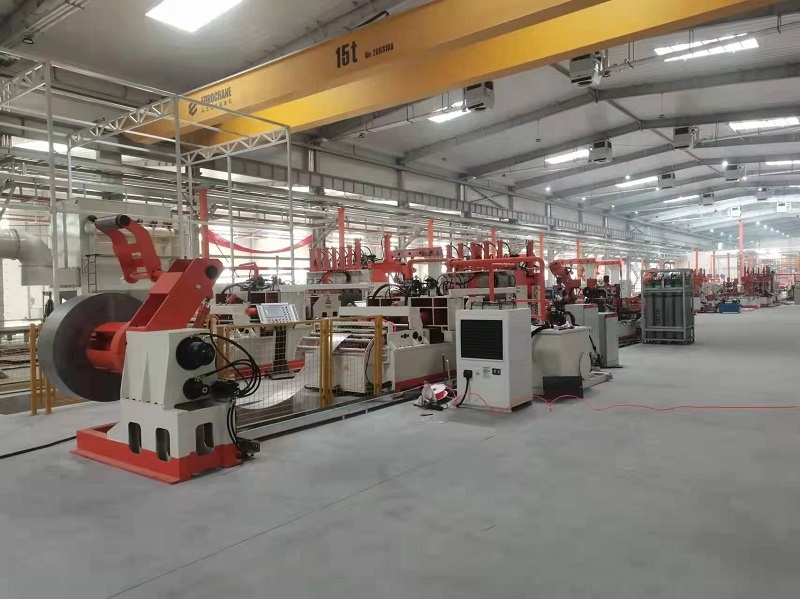

2. Parts of BW1600B Transformer Corrugated Tank Production Line

    1) Automatic Decoiler Machine

    2) Transformer Corrugated Radiator Former

    3) Hydraulic Transformer Tank Fin Shearing and Hemming Machine

    4) Hydraulic Station

    5) PLC Control System

3. Main Technical Parameters

   1) Corrugated Fin Width: 300mm-1300mm

   2) Thickness of Steel Sheet: 0.5mm-1.75mm

   3) Corrugation Height: 50mm-400mm

   4) Hemming function is optional, hemming height: 20mm

   5) Forming Speed: 3-6fins/min

   6) Corrugation Pitch: >=45mm

   7) Corrugation Pitch Accuracy: ±0.25mm

   8) Fin embossment: one or two (Optional)

   9) Corrugation Inner Gap: 6mm
